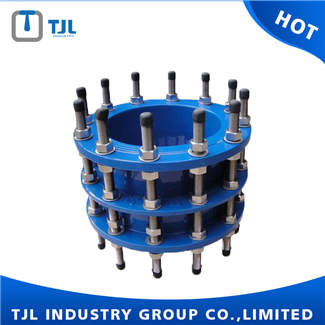

C2F Double Flange Expansion Joint Dismantling Joint

  • Product Name:C2F Double Flange Expansion Joint Dismantling Joint
  • Unit Price:
  • Design Standard:
  • FTF Dimension:
  • Flange Connection:EN1092, ANSI B16.5
  • Inspection and Test:EN12266-1/API 598
  • Delivery Time:15-30 days
  • Tel: +86-22-28219562
  • Fax: +86-22-28219554 ext.8888
Product Details: C2F Double Flange Expansion Joint Dismantling Joint


Product Overview


FLange limit expansion joint is conposed of main componts such as body, sealing ring, gland, telescopic short tube and so on. On yhe basic function of the loose sleeve expansion joint, a limt device is added, locked by double-nut at the place of maximum expansion. The pipeline is flexible within the allowance is exceeded, the limit device works to ensure the safety of the pipeline. It is especially suitable for connection in pipelines with vibration or a certain slope and bend. It is suitable for conveying seawater, fresh water, hot and cold water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, steam and granular powder with a temperature not higher than 250℃.


Features and Advantage:


1. Compensate for differences in flange to flange distance.

2. Simplify the installation of pipelines.

3. Integrate a valve or pump into a flanged pipe network.

4. Flange connection, flange drilling can base on DIN PN6/16/25, ANSI CLASS150/300, JIS, EN, etc.

5. Reduce assembling time.

6. Dismantle for service, inspection and maintenance.

7. Epoxy powder coating and bolting made of steel.

8. Drinking water approved.


Main Technical Parameters


Pressure rating1.0MPa1.6MPa
Test level
Strength1.5MPa2.4MPa
Seal1.1MPa1.76MPa
Temperature
-10℃~80
MediumClean water
