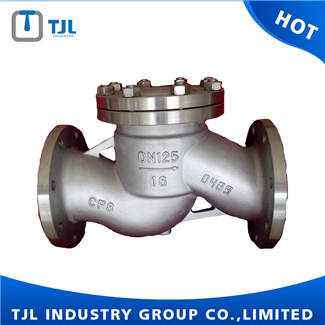

Nominal Diameter: DN 15-300
Nominal Pressure: PN16&25&40
Design Standard: DIN EN13709-2003
FTF Dimension: DIN EN588-1:1995
Flange Connection: DIN EN1092-1:2002
Inspection and Test: DIN EN12266:2003
Material List:
No. Item Material Symbol
1. Body&Bonnet Stainless Steel ASTM A351 CF8
Stainless Steel ASTM A351 CF8M
WCB ASTM A216 WCB
2. Disc Stainless Steel ASTM A351 CF8
Stainless Steel ASTM A351 CF8M
WCB ASTM A216 WCB
3. Gasket Graphite+304/316/304L Graphite+304/316/304L
4. Stud&Nut A194B8&8/B7&2H A194B8&8/B7&2H
Structure and Feature
1. OEM Factory: Professional manufacturer, clients from whole world.
2. High Quality, Competitive Price: Custom is accepted.
3. Complete Service: Long service Life, Fast delivery, Multilingual services.
4. Certificates: ISO9001, CE, NSF, TS, WRAS.
5. Low MOQ: Ready for providing the sample and producing some small orders.
