Double Flange Limit And Flexible Joint

  • Product Name:Double Flange Limit And Flexible Joint
  • Unit Price:
  • Design Standard:
  • FTF Dimension:
  • Flange Connection:EN1092, ANSI B16.5
  • Inspection and Test:EN12266-1/API 598
  • Delivery Time:15-30 days
  • Tel: +86-22-28219562
  • Fax: +86-22-28219554 ext.8888
Product Details: Double Flange Limit And Flexible Joint

Nominal Diameter:       DN80 to DN3000

Nominal Pressure:       PN6-40

Flange Connection:    EN1092, ANSI B16.5

Inspection and Test:   EN12266-1/API 598

Material List:


No. Item               Material

 1. Long Piece     DI/CI/CS/SS

 2. Short Piece    DI/CI/CS/SS

 3. Sealing           EPDM

 4. Gland             DI/CI/CS/SS

 5. Stud               CS/SS

 6. Nut                 CS/SS

 7. Gasket           CS/SS

Structure and Feature


Features and Advantage:

1. Compensate for differences in flange to flange distance.

2. Simplify the installation of pipelines.

3. Integrate a valve or pump into a flanged pipe network.

4. Flange connection, flange drilling can base on DIN PN6/16/25, ANSI CLASS150/300, JIS, EN, etc.

5. Reduce assembling time.

6. Dismantle for service, inspection and maintenance.

7. Epoxy powder coating and bolting made of steel.

8. Drinking water approved.

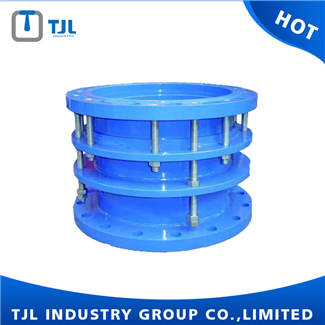

Product Images: Double Flange Limit And Flexible Joint
