HRW High Temperature and high Pressure Type Steam Trap

  • Product Name:HRW High Temperature and high Pressure Type Steam Trap
  • Unit Price:
  • Design Standard:GB/T22654; JB/T 9093
  • FTF Dimension:GB/T12250
  • Flange Connection:EN1092, ANSI B16.5
  • Inspection and Test:
  • Delivery Time:GB/T 12251
  • Tel: +86-22-28219562
  • Fax: +86-22-28219554 ext.8888
Product Details: HRW High Temperature and high Pressure Type Steam Trap

Nominal Diameter:        DN15-25

Nominal Pressure:        PN16-260

Design Standard:         GB/T22654; JB/T 9093

FTF Dimension:            GB/T12250

Flange Connection:      EN1092, ANSI B16.5

Socket welded ends:    ASME B16.11

Inspection and Test:     GB/T 12251

Material List:


No. Parts         Material

  1   Body         WC6/F22/SS

  2   Bonnet      WC6/F22/SS

  3   Disc          Stainless Steel

Structure and Feature


1. This type of steam trap is equipped with automatic blow-out mechanism. The new type crowned valve disc and seal is very reliable. The steam heat protection device saves the energy in an effective way.

2. When the device starts up, it can drain out the air and condensation water quickly with large capacity and low steam leakage rate.

3. It is strong in anti-corrosion, reliable in operation and durable in performance.

4. Within the scale of pressure, it will not require for adjustment and has outstanding performance on energy saving.


Main application:

It can be applied for saturated steam main pipeline in high temperature and pressure and in critical state of steam in turbine.

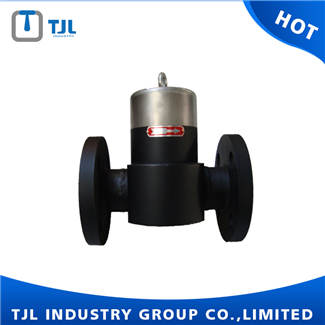

Product Images: HRW High Temperature and high Pressure Type Steam Trap
