Two-Pieces Type Threaded Ball Valve

  • Product Name:Two-Pieces Type Threaded Ball Valve
  • Unit Price:
  • Design Standard:ASME B16.34
  • FTF Dimension:
  • Flange Connection:
  • Inspection and Test:API598
  • Delivery Time:
  • Tel: +86-22-28219562
  • Fax: +86-22-28219554 ext.8888
Product Details: Two-Pieces Type Threaded Ball Valve
Nominal Diameter: 3/8" to 2 1/2"


Nominal Pressure:1000PSI


Design Standard:BS 5351/ ASME B16.34


Threaded End:NPT,BSPT,DIN259/2999ISO228,ASME B1.20.1


Inspection and Test:API598


Material List


NoItemMaterialSymbol
1BodyStainless SteelASTM  A351 CF8/CF8M
Carbon SteelASTM A216 WCB
2BallCarbon SteelASTM A105+ENP
Stainless SteelASTM A182 F6a/F304/F316
3StemStainless SteelASTM A182 F6a/F304/F316
4Seat RingPTFEPTFE
5PackingPTFEPTFE
6HandleCarbon Steel/Stainless SteelCS/SS304
Structure and Feature:


1. REDUCED PORT DESIGN.


2. 1 PIECE THREADED BODY.


3. FLOATING BALL TYPE.


4. BLOW-OUT PROOF STEM.


5. ANTI-STATIC DEVICE.


6. WITH LOCKING DEVICE.

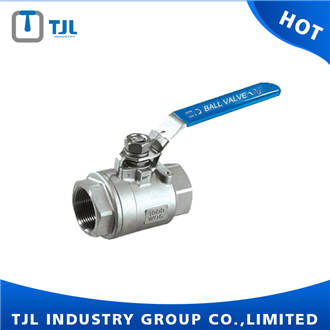

Product Images: Two-Pieces Type Threaded Ball Valve
