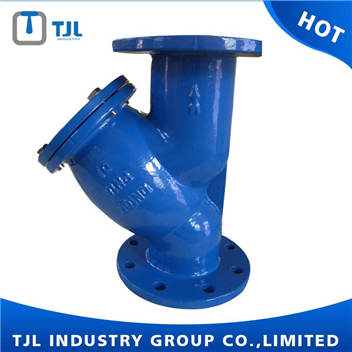

Cast Iron Y Filter DN100

Product Overiew

Y-type flange fiter is a necessary filter equipment for hydraulic control valve and precise mechanical products. It is usually installed at the inlet  end of hydraulic control valve and other equipment to prevent particulate impurities from entering into the channel, resulting in blockage, so that the valve or other equipment can not be used normally.  The valve has the advantages of simple structure, small flow resistance, and can remove dirt on line without removal.

Product Description

Functional Role and User Focus

The cast iron y filter is designed primarily to safeguard hydraulic control valves and sensitive mechanical equipment from particulate contaminants. By filtering impurities at system inlets, it prevents damage and blockages that could disrupt function. This product targets users involved in hydraulic system maintenance and machinery protection, including those managing industrial or process fluid applications requiring consistent filtration performance.

Technical Specifications and Standards

This filter utilizes a cast iron body combined with stainless steel screens and NBR O-rings for sealing integrity. It meets design standards HG/T21637-1991 and incorporates flange connections per EN1092-2 PN10/16 and ANSI B16.5, with dimensional compatibility to DIN3202 F1 / ISO5752 / EN558-1. Its Y-type flange structure promotes low flow resistance while supporting inline dirt removal without system disassembly, facilitating easier maintenance procedures.

Application Context and System Integration

Typically installed at hydraulic valve inlets, the cast iron y filter supports fluid cleanliness vital for hydraulic control and precision equipment reliability. It suits retrofitting existing filtration setups and serves as a replacement option where inline cleaning reduces downtime. The filter’s construction accommodates typical industrial hydraulic environments, emphasizing operational continuity and contamination control.

Product Advantages

Procurement-Relevant Design

The filter’s construction with cast iron and stainless steel screens combined with standard-compliant flange connections ensures compatibility with common industrial systems. Inline dirt removal capability reduces maintenance labor and potential system disassembly costs. These features align with operational priorities in sourcing components that support maintenance efficiency and system uptime.

Operational Fit and Quality Standards

Conformance to recognized industry standards and inspection protocols such as EN12266-1 and API 598 offers confidence in product quality and performance consistency. The use of NBR O-rings provides reliable sealing to minimize leakage risk. These procurement aspects reinforce the filter’s practical value for use in hydraulic and mechanical filtration applications.

Technical Paramters

FAQ

What materials are used in the cast iron y filter DN100 to ensure durability?

Our cast iron y filter DN100 is crafted from durable cast iron for the pipe body, stainless steel for the screen, and NBR O-rings for sealing. This combination guarantees long-lasting performance and strong resistance to wear, providing reliable filtration in hydraulic systems.

Can you customize the cast iron y filter DN100 to meet specific system standards?

Yes, we manufacture the cast iron y filter DN100 following HG/T21637-1991, DIN3202, ISO5752, and EN558-1 standards. We also support different flange connections, including EN1092-2 PN10/16 and ANSI B16.5, allowing customization to fit your system requirements.

How is maintenance handled for the cast iron y filter DN100 during operation?

Our cast iron y filter DN100 is designed with inline dirt removal, so you can clean accumulated impurities without dismantling the system. This feature reduces maintenance time and costs while maintaining hydraulic efficiency and protecting precision equipment.

What is the typical delivery time and ordering process for the cast iron y filter DN100?

We typically deliver the cast iron y filter DN100 within 15 to 30 days. To order, please contact us through info@tjlindustry.com or call +86-22-28219562. Our team is ready to provide support and assist with your filtration needs.
