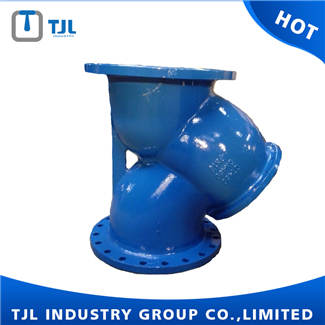

DN450 Cast Iron Y Filter

Product Overiew

Y-type flange fiter is a necessary filter equipment for hydraulic control valve and precise mechanical products. It is usually installed at the inlet  end of hydraulic control valve and other equipment to prevent particulate impurities from entering into the channel, resulting in blockage, so that the valve or other equipment can not be used normally.  The valve has the advantages of simple structure, small flow resistance, and can remove dirt on line without removal.

Product Description

Functional Positioning and Target Users

The DN450 cast iron y filter serves as a protective valve within pipeline systems, primarily installed at inlets of hydraulic control valves or machinery to prevent clogging from particulates. It is suitable for use by facility maintenance teams and pipeline system operators focused on maintaining operational reliability and minimizing downtime. This valve's function is to filter impurities to ensure uninterrupted flow and equipment safety.

Technical Features and Specifications

Constructed from cast iron, ductile iron, or cast steel, the pipe body integrates a stainless steel screen and NBR O-ring to provide effective particulate filtration and sealing. The Y-type flange configuration reduces flow resistance while allowing for inline dirt removal without dismantling. It complies with standards including DIN3202 F1, ISO5752, EN558-1, and HG/T21637-1991, with flange connections meeting EN1092-2 PN10/16 and ANSI B16.5 specifications. Inspection and testing align with EN12266-1 and API 598.

Application Fit and Real-World Value

This filter valve fits industrial and municipal pipelines requiring particulate removal to safeguard valve function and prevent downtime. It is applicable in hydraulic controls, water treatment filtration stages, and general pipeline protection scenarios where maintenance efficiency is critical. Its design allows easy cleaning during operation, supporting continuous production and reducing maintenance labor.

Product Advantages

Procurement-Relevant Design

The valve’s design prioritizes ease of installation and maintenance with Y-type flange connections standardized to EN1092-2 PN10/16 and ANSI B16.5, facilitating compatibility in various pipeline setups. Use of cast iron and stainless steel materials aligns with common procurement specifications for durability and corrosion resistance in pipeline components, supporting consistent sourcing requirements.

Operational Fit

The ability to remove debris without valve disassembly reduces downtime and maintenance complexity, which is a key operational advantage for bulk applications or OEM settings. Compliance with multiple international design and testing standards offers assurance on quality and interoperability, aiding buyers needing standardized components for broad industrial use.

Technical Paramters

FAQ

What materials are used in your DN450 cast iron y filter Valve?

Our DN450 cast iron y filter Valve features a robust pipe body made from cast iron, ductile iron, or cast steel, combined with a stainless steel screen and NBR O-ring. This material combination ensures durability and reliable filtration performance for demanding pipeline environments.

Can the DN450 cast iron y filter Valve be cleaned without removing it from the pipeline?

Yes, the design of our cast iron y filter valve allows easy removal of debris and accumulated dirt without needing to dismantle or remove the valve, reducing downtime and simplifying maintenance for continuous operation.

Is it possible to customize the DN450 cast iron y filter Valve to suit specific pipeline requirements?

We offer customization options concerning materials, flange connections, and dimensions to meet your project’s standards, backed by compliance with EN1092-2 PN10/16 and ANSI B16.5, ensuring the cast iron y filter fits your unique needs.

What is the typical delivery time and inspection process for your filter valves?

Our usual delivery time ranges from 15 to 30 days. Each valve undergoes rigorous inspections and tests according to EN12266-1 and API 598 standards, ensuring the highest quality and performance before shipment to meet your expectations.
