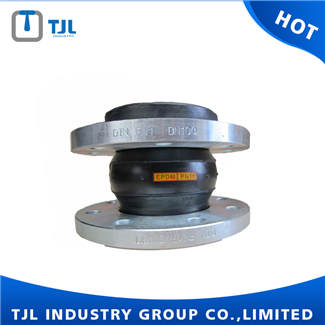

Flange Rubber Joint
- Product Name:Flange Rubber Joint
- Unit Price:
- Design Standard:
- FTF Dimension:ISO5752/EN558-1
- Flange Connection:EN1092, ANSI B16.5
- Inspection and Test:EN12266-1/API 598
- Delivery Time:15-30 days
- Email: info@tjlindustry.com
- Tel: +86-22-28219562
- Fax: +86-22-28219554 ext.8888
Main Part Materials
| Name | Body | Lining | Frame | Flange |
| Material | Rubber | Nylon cord fabric | Hard steel wire | Carbon steel |
Main Technical Parameters
| Model | JGD-1 | JGD-2 | JGD-3 |
| Working pressure MPa(kgf/cm²) | 1.0(10) | 1.6(16) | 2.5(25) |
| Burst pressure MPa(kgf/cm²) | 2.0(20) | 3.0(30) | 4.5(45) |
| Vacuum MPa(mm/Hg) | 53.3(400) | 86.7(650) | 100(750) |
| Applicable temperature | -15~+115℃(Special can reach)-30~+250℃ | ||
| Applicable medium | Air, compressed air, water, sea water, hot water, oil, acid, alkali, etc | ||
Structure and Feature
1. Small volume, light weight, good elasticity, easy installation and maintenance.
2. Installation can generate horizontal, axial and angular displacement, from pipe barrier heart, flange is not parallel to the limit.
3. Work to reduce structural transmission of noise, vibration absorption ability.
4. Good sealing performance and scalability, easy to use. Internal high density, can endure high pressure, elastic deformation effect is good.
5. Use of rubber of high elasticity, high resistance, solvent resistance, weather resistance and radiation resistance and other advantages can reduce vibration and noise,and play the role of compensation for thermal expansion and contraction caused by temperature change.
6. Standard sizes range from 1.25" through 80".
