Non-rising Stem Resilient Seal Gate Valve

  • Product Name:Non-rising Stem Resilient Seal Gate Valve
  • Unit Price:
  • Design Standard:DIN3352/ BS 5163/BS EN1171/EN1074-1&2
  • FTF Dimension:DIN 3202-F4/DIN 3202-F5/ BS 5163/ ANSI B16.10/ JIS B2002/EN558-1 SERIES 14&15
  • Flange Connection:ASME B16.5 CL150/DIN 2501 PN10-16/EN1092 PN10-16 /ISO 7005-2/JIS B2212 10K
  • Inspection and Test:ISO 5208/EN 12266-1/API598
  • Delivery Time:15-30days
  • Tel: +86-22-28219562
  • Fax: +86-22-28219554 ext.8888
Product Details: Non-rising Stem Resilient Seal Gate Valve

Non-rising Gate Valve Product Overview


Resilient seated seal gate valve we produced adopt hi-tech valve manufacturing technology from Europe, making use of elastic deformation compensation effect produced by overall packaging Europe, making use of elastic deformation effect produced by overall packaging rubber of valve plate to achieve good seal effect and overcoming, leaking and rust of normal gate valves. It can be widely used as a regulating and throttling device for fluid pipelines in some systems such as water supply, sewage treatment, construction peroleum, chemical industry , food industry,medicine, textile industry, electrictrical power, ship construction, metallurgy and energy, etc.


Non-rising Gate Valve Product Features


Light weight: This valve is made by ductile iron in resin sand shape, with high strength and low load, the weight of the valve is 20%~30% lower than a traditional gate valve, which can be installed and maintained very conveniently.


Plain seat: The seat of a traditional gate valve is normally hollow type that increases fluid resistance sily piles up sundries like welding slag, stone, mud and sand etc, which is bad for seal and fluid face. However, the resilient seated seal gate valve produced by our company  adopts a design of plain base type and straight through whole basin type which equals straigh pipes. It doesn't  easily pile up sundries, ensuring reliable seal and making fluid flow smoothly.


Disc overall packaged with rubber: The valve disc adopts high quality rubber to package itself overall both inside and outside, the European top-ranking rubber vulcanization technology can not only make vulcanized valve ensure precise dimensions but also make rubber and ductile iron wedge bond and coat tightly, not easily coming off and having good memory of resilience.


Disc overall packaged with rubber: The valve disc daopts high quality rubber to package itself overall both inside and outside, the European top-ranking rubber vulcanization technology can not only make vulcanized valve ensure precise dimensions but also make rubber and ductile iron wedge bond ang coat tightly, not easily coming off and having good memory of resilience,


Precise casting body: Body uses precise casting so that accurate dimensions can make body's inner part without any machining, ensuring good function of seal. Framework of the valce plate applies ductile iron, packaging with rubber overall, which owns accurate dimensions, tight bonding and coating, ang good memory of resilience. It is not coming off ang can interchange.


Anti-corrosion: The body's inside and outside adopt pulverous epoxy resin to do coating. The inner part uses stainless steel and copper alloy to prevent the corrosion and rusty, which can be used for sewage system and rusty, which can be used for sewage system and severe environment like underground.


Not easily crumbled: The traditional cast iron gate valve is normally caused to crumble by hitting, crashing and heavy pressing, etc. Use of ductile iron material, reduce most of such condition.


O ring seal ring: Body adopts the design of three layers of "O" type seal ring, which can reduce friction resistance caused by opening and closing, lessen leakage greatly and change the seal ring under the condition of water supply.

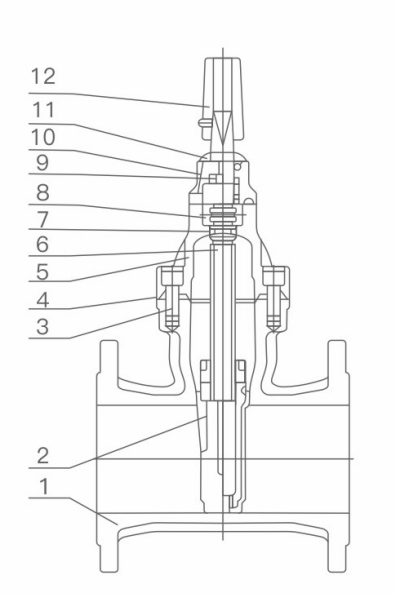

Non-rising Gate Valve Main Part Materials


No.Part names
Materials
1BodyDuctile iron、cast steel
2PlateDuctilr iron coated with epdm or NBR
3BoltCarbonization processing
4Seal ringNBR
5BonnetDuctile iron、cast steel
6StemStainless steel
7"O" type seal ringNBR
8Thrust bearingTin bronze
9Screw
Stainlesss steel
10GlandDuctile iron、cast steel
11Dust guideNBR
12

The handwheel

(transmission cap)

Cast iron


Non-rising Gate Valve Technical Parameters


Nominal pressure: 1.0~2.5MPA

Nominal diameter: 50-1200mm

Operating temperature: 0-80℃

Applicable media: Water and gas, etc

Flange standards: GB/T 17241.6、GB/T 9113EN1092、ASME B16.5

Testing standards: GB/T 13927API 598
