Globe Gate Valve 4 Inch

  • Product Name:Globe Gate Valve 4 Inch
  • Unit Price:
  • Design Standard:GOST 5761-74
  • FTF Dimension:ISO 5752
  • Flange Connection:GOST 12815
  • Inspection and Test:ISO 5208
  • Delivery Time:15-30days
  • Tel: +86-22-28219562
  • Fax: +86-22-28219554 ext.8888
Product Details: Globe Gate Valve 4 Inch

Nominal Diameter:        DN 15-200

Nominal Pressure:        PN10/16/25/40/63

Design Standard:         GOST 5761-74

FTF Dimension:            ISO 5752

Flange Connection:     GOST 12815

Inspection and Test:    ISO 5208

Material List:


No. Item               Material                        Symbol

1.Body                 Carbon Steel                WCB+13Cr

                            Stainless Steel             ASTM A351 CF8/CF8M

2.Disc                  Carbon Steel                A105+13Cr

                            Stainless Steel             ASTM A351 CF8/CF8M

3.Stem                 Stainless Steel             A182 F6

                            Stainless Steel             A182 304/316

4.Stem Nut           Ductile Iron                  GGG40/GGG50

                             Brass                           Brass

5.Bonnet               Carbon Steel               WCB

                             Stainless Steel             ASTM A351 CF8/CF8M

6.Gasket               Graphite+SS304         Graphite+SS304

7.Packing              Graphite                      Graphite

8.Gland Flange     Carbon Steel               WCB

                              Stainless Steel            SS201/SS304

9.Handwheel         Carbon Steel               WCB

10.Nut& Bolt          A194 2H&A193 B7      A194 2H&A193 B7

                              Stainless Steel            SS201/SS304

Structure and Feature


1. OEM Factory:    Professional manufacturer, clients from whole world.

2. High Quality, Competitive Price:    Custom is accepted.

3. Complete Service:    Long service Life, Fast delivery, Multilingual services.

4. Certificates:    ISO9001, CE, NSF, TS, WRAS.

5. Low MOQ:    Ready for providing the sample and producing some small orders.

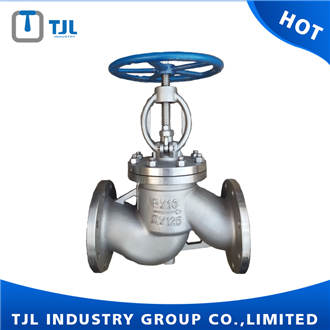

Product Images: Globe Gate Valve 4 Inch
