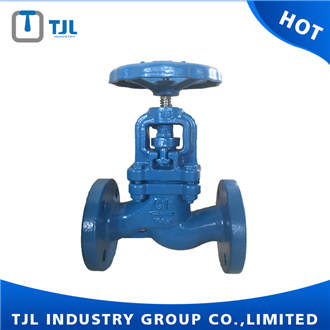

DIN Cast Iron Globe Valve DN100

Intuitive Flow Control for Everyday Use

The DN100 globe valve is designed for homeowners and light commercial users seeking dependable control over their water or heating systems. This cast iron globe valve offers smooth on/off and throttling capabilities, making it easy to regulate flow or shut off liquids completely. Its design suits common household plumbing and small facility pipelines, where straightforward operation and maintenance are top priorities. Whether upgrading existing systems or installing new setups, the valve delivers user-friendly functionality with lasting performance.

Robust Build with Trusted Materials and Standards

Crafted as a DIN globe valve, this model features a sturdy cast iron body providing strength and corrosion resistance suitable for typical fluids encountered in home and commercial environments. The standardized DIN globe valve dimensions ensure compatibility with existing pipes and fittings. High-quality packing and gasket materials deliver tight sealing to prevent leaks. Its DN100 size with industry-standard flange connections enables simple integration. The valve’s construction emphasizes durability and secure operation, underlining its consistent, trouble-free use over time.

Versatile Role in Household and Commercial Systems

Homeowners and service professionals will value the cast iron globe valve for controlling flow within domestic heating, water supply, and light commercial fluid systems. Its reliable sealing supports maintaining system pressure and preventing unwanted flow interruptions. This valve is a practical solution for everyday system tasks, such as isolating equipment or regulating water flow, contributing to efficient energy use and prolonging equipment life. Its compatibility with standard pipe configurations makes it a convenient choice for residential and small business plumbing needs.

Nominal Diameter:    DN15-400

Nominal Pressure:    PN 16&25&40

Design Standard:    DIN EN13709-2003

FTF Dimension:    EN558-1 SERIES 1

Flange Connection:    EN1092-2 PN10-40

Inspection and Test:    DIN EN12266:2003

Material List:

No. Item           Material                   Symbol

1. Body            Ductile Iron               GGG40

                        Stainless Steel         ASTM A351 CF8/CF8M

                        WCB                         ASTM A216 WCB

2. Disc             Ductile Iron               GGG40

                        Stainless Steel          ASTM A351 CF8/CF8M

                        WCB                         ASTM A216 WCB

3. Stem            Stainless Steel         ASTM A182 F304/F316

                        13Cr

4. Bonnet         Ductile Iron               GGG40

                        Stainless Steel          ASTM A351 CF8/CF8M

                        WCB                         ASTM A216 WCB

5. Bolt& Nut     B7& 2H                     B7& 2H

                        B8&8                         B8&8

6. Packing       Graphite                    Graphite

7. Gasket        304+Graphite            304+Graphite

Structure and Feature

1. OEM Factory:    Professional manufacturer, clients from whole world.

2. High Quality, Competitive Price:    Custom is accepted.

3. Complete Service:    Long service Life, Fast delivery, Multilingual services.

4. Certificates:    ISO9001, CE, NSF, TS, WRAS.

5. Low MOQ:    Ready for providing the sample and producing some small orders.

Use Scenarios

Application in Residential and Light Commercial Water Systems

In home water distribution or small commercial plumbing networks, the DN100 globe valve serves as a reliable control point to regulate water flow or isolate sections for repair. Its cast iron construction withstands daily usage, and compliance with DIN standards ensures compatibility with existing installations. Easy to operate and maintain, it fits seamlessly into water heaters, pumps, or pipe branches, supporting household comfort and system efficiency. The valve’s tight sealing helps maintain pressure, reducing waste and potential water damage.

Role in Heating and HVAC Systems for Small Facilities

The DIN globe valve is widely applied within heating and HVAC setups where precise flow adjustments and isolations are necessary. It supports smooth throttling of hot water or steam in pipe circuits, contributing to energy-efficient temperature control. Its reliable sealing materials prevent leaks that could impair system performance or cause safety hazards. Designed for straightforward flange installation according to industry standards, the valve integrates cleanly into existing HVAC pipelines, enhancing functionality and ensuring maintenance ease.

FAQ

What materials are used in your DN100 globe valve?

Our DIN globe valve features a cast iron body with trim options including CF8, CF8M stainless steel, and WCB carbon steel. The stem is stainless steel (A182 F304/F316), and packing uses graphite, ensuring durability and reliable sealing for various fluids.

Can you customize the flange connection on your globe valve?

We manufacture the DN100 globe valve with flange connections conforming to EN1092-2 PN10-40 standards. If your project requires specific flange dimensions or pressure ratings, please contact us to discuss custom solutions.

What standards does your cast iron globe valve comply with?

Our cast iron globe valve is designed and tested according to DIN EN13709-2003 for structure and DIN EN12266:2003 for inspection and testing. This ensures reliable operation, smooth throttling, and long service life in your piping systems.

How should I maintain the DN100 globe valve for long-term use?

We recommend routine inspection, especially seat leakage testing and gasket inspection. Using original spare parts and graphite packing replacement maintains the valve’s sealing performance. Our tech team can provide guidance for maintenance to ensure optimal valve function.
